SWT-5kw wind turbine

SWT-5kw wind turbine
Main Parameter:

5kw household variable pitch wind turbine manufacturer, China supplier-SENWEI ENERGY as the best quality small wind turbine generator manufacturer, already has a good reputation abroad, especially in European countries such as Italy, France, Britain, Ireland, Austria, Poland, Denmark and so on. They praise the technical stability of our SWT-5KW variable pitch wind turbines. They are familiar with the operation of our pitch controlled wind turbines and the solutions of this type wind turbines. Therefore, our products have won the favor of many customers from Europe.


In recent years, due to the low cost of photovoltaic system with cheap solar panels, this situation also forces us to produce better quality and cheaper wind turbine generators to meet the current market, to solve the market bottleneck of small wind turbine, so that users can use better and higher quality small wind turbines with low cost. The system enables users to afford pitch controlled wind turbines and install variable pitch small wind turbines. At the same time, it caters to the photovoltaic system and works with it to build wind-solar complementary system, so that the entire alternative energy system can be more perfect and more benefit for the end-users, so that customers feel that is no longer at risk if they invest in alternative energy.



SWT-5KW variable pitch controlled wind turbine is composed of pitch blade, permanent magnet generator, rotary body(including the slip ring and mechanical braking device), tower, braking switch,electric controller, battery bank, inverter, cable, etc. It has adopted the mechanical variable blade pitch technology. When the blade is static, it can be started easily; as soon as the wind speed reached 3m/s, the rotor will begin to rotate. Within the wind speed of 4-11m/s, driven by the centrifugal force, the blade will change it’s position gradually, tracking the relative high lift over drag ratio for the better running efficiency; When the blade is rotating fast, the centrifugal hammer will draw the blade backward towards it’s original position, keeping the blade running with the rated speed, the maximum rotation speed would be no more than 280r/min.


Downwind type, without tail vane.All of the exposed components have experienced a long effecting anti-corrosion treatment to protecting the exposed parts in open air.



Purpose:
Off-grid small wind turbine system: the power generated by the turbine will be converted and charged by controller into the battery bank, and this will power the load:such as lighting,household appliance, dynamic equipment by an inverter.

On-grid small wind turbine system: the power generated by the turbine will be converted by controller and feed back to the grid system through an on-grid inverter.



Variable pitch 5KW wind turbine technical parameters

Rotor diameter:

5.6m

Blades quantity:

3pcs

Direction:

always downwind

Blades material:

Glass fiber reinforced plastic

Rated output:

5.0kW

Maximum output:

5.4kW

working voltage:

DC240V/400V,AC220V

Annual average energy production:

11880KWH (in rate 5m/s wind speed)

working wind speed:

3-30m/s

Initial wind speed:

3.0m/s

Nominal wind speed:

10.5m/s

Storm-stand:

up to 60m/s

Max rotate speed:

240r/min

Wind turbine type:

Three-phase, PMG Alternator

Working temperature:

from -40 to +60 C

Blade Pitch Control

Variable Pitch

Stop method

Positivity Blade Pitch

Speed regulation methods:

Passivity Pitch

Gearbox:

None, Direct Drive

Battery charge time:

about 8 hours

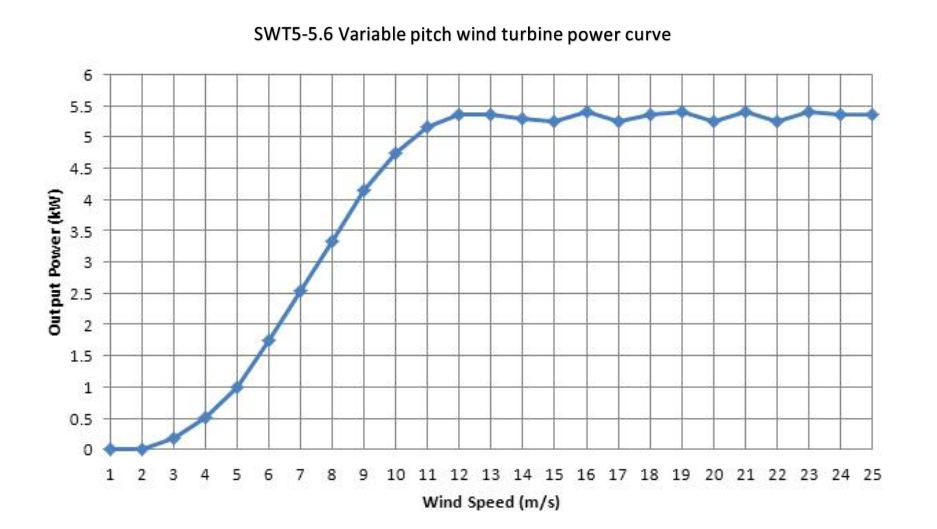

Power Curve




The AEP- Annual Energy Prediction


 Average wind speed Average Energy Turbulence
SWT 5.6-5KW  m/s  mph Ideal 15% 20% 25%
Variable pitch wind turbine 4.5 10.1 8,212 6,980 6,570 6,160
5 11.2 10,950 9,308 8,760 8,213
5.5 12.3 12,775 10,859 10,220 9,581
6 13.4 14,965 12,720 11,972 11,224
                        Estimated Annual Energy Production (kWh)
