Solar submersible pump

Solar submersible pump
Main Parameter:



Profile

Adopt stainless steel casing, shaft core ,coupling ,water entry base and pump body ( or copper alloy water entry base ,pump body ) ,blower inlet casing ,impeller with new polymer materials of high-strength and wear -resistant. New"floating style" structure of impeller avoids axial pressure to motor . With combination of motor and controller, the max efficiency is over 85%, raises 20% than the traditional AC one .

Material:

1)  Stainless steel casing ,shaft core , coupling and pump body ; copper alloy connecting ,base , blower inlet casing ,impeller with new polymer materials of high-strength and wear-resistant.

2) Water immersion style stainless steel submersible motor: graphite bearing.

Product Feature :

A.Compact structure ,high-lift,noiseless,pollution-free,complete electrical protecting controller device ,against under-voltage,over-voltage,over-flow,overload,waterless etc.automatic recovery ,controlling water height as demand

B. Easy installation,maintenance-free, safe and reliable. Water depth:1-180m  Max flow:2.5m3/h

Application

These electric pumps series are workable maximum head ,as there are no restrictions of BDC ,With the addition of high head, high efficiency and wide high efficiency zone ,they are suitable for distance water irrigation, high efficiency of increasing oxygen on aquaculture ,pumping  water from deep well , gardening,fountain and etc.

Working condition

1.Non-corrosive water , the volume ratio of sand content no more than particle size less than 0.2mm

2.Max medium temperature up to +400c. PH value remains 6.5-8.5

3.Work close to the rated head and must be immersed in water

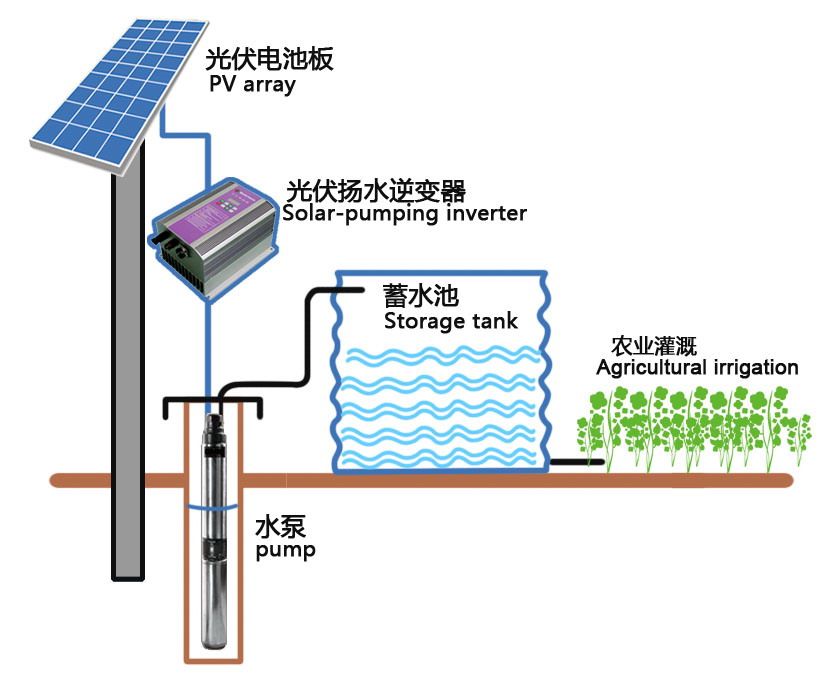

Working Principle:





Actual Case Application:

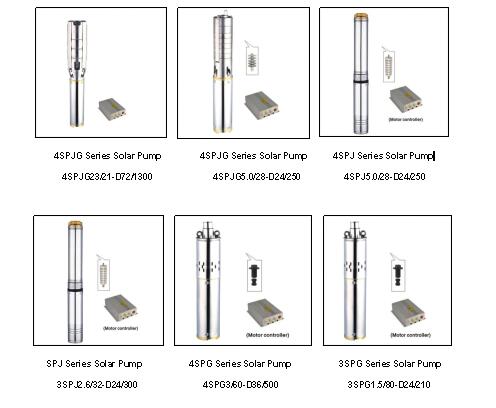

Detailed Model and according Technical Parameters:



Model ONE: 4SPSW23/21-D72/1300

4---PUMP OUTER DIAMETER(INCH)

SPJG---SOLAR PUMP NAME

23---MAX FLOW(M3/H)

21---MAX HEAD(M)

D---D IS THE COCURRENT

72---VOLTAGE(V)

1300BATTERY BOARD ARRAY POWER

Technical Data

Model

voltage  (V)

Power (W)

Max Flow (M3/H)

Max Head (M)

Outlet       (IN)

Weight (KG)

4SPJG23/21-D72/1300

42-88

800-1500

23

21

3"

23

4SPJG28/13-D72/1300

42-88

800-1500

28

13

3"

24

6SPJG46/7-D72/1300

42-88

800-1500

46

7

4"

22

Model TWO: 4SPSW5.0/28-D24/250

4SPJG5.0/28-D24/250

4---PUMP OUTER DIAMETER(INCH)

SPJG---SOLAR PUMP NAME

5.0---MAX FLOW(M3/H)

28---MAX HEAD(M)

D---D IS THE COCURRENT

24---VOLTAGE(V)

250---BATTERY BOARD ARRAY POWER

Technical Data

Model

voltage  (V)

Power (W)

Max Flow (M3/H)

Max Head (M)

Outlet       (IN)

Weight (KG)

4SPJG5.0/28-D24/250

22-30

120-360

5

28

1.25"

12

4SPJG5.5/38-D36/400

32-43

200-500

5.5

38

1.25"

12.5

4SPJG5.5/58-D48/750

42-63

450-900

5.5

58

1.25"

13.5

4SPJG6.0/72-D72/1000

42-88

600-1200

6

72

1.25"

15.5

4SPJG6.5/98-D72/1300

42-88

800-1500

6.5

98

1.25"

16.5

4SPJG10/30-D48/750

42-63

450-900

10

30

1.5"

13.5

4SPJG10/44-D72/1000

42-88

600-1200

10

44

1.5"

15

4SPJG10/57-D72/1300

42-88

800-1500

10

57

1.5"

15.5

4SPJG15/21-D72/1000

42-88

600-1200

15

21

2"

13.5

4SPJG15/28-D72/1300

42-88

800-1500

15

28

2"

14



Model THREE: 4SPSW5.0/28-D24/250

4SPJ5.0/28-D24/250

4---PUMP OUTER DIAMETER(INCH)

SPJ---SOLAR PUMP NAME

5.0---MAX FLOW(M3/H)

28---MAX HEAD(M)

D---D IS THE COCURRENT

24---VOLTAGE(V)

250---BATTERY BOARD ARRAY POWER

Technical Data

Model

voltage (V)

Power(W)

Max Flow (M3/H)

Max Head (M)

Outlet       (IN)

Weight (KG)

4SPJ5.0/28-D24/250

18-26

120-360

5

28

1.25"

11

4SPJ5.5/38-D36/400

32-43

200-500

5.5

38

1.25"

11.5

4SPJ5.5/58-D48/750

42-63

450-900

5.5

58

1.25"

12

4SPJ6.0/72-D72/1000

42-88

600-1200

6

72

1.25"

13.5

4SPJ6.5/98-D72/1300

42-88

800-1500

6.5

98

1.25"

14

4SPJ10/30-D48/750

42-63

450-900

10

30

1.25"

12.5

4SPJ10/44-D72/1000

42-88

600-1200

10

44

1.25"

13

4SPJ10/57-D72/1300

42-88

800-1500

10

57

1.25"

13.5



MODEL FOUR: 3SPSW2.6/32-D24/300

3SPJ2.6/32-D24/300

3---PUMP OUTER DIAMETER(INCH)

SPJ---SOLAR PUMP NAME

2.6---MAX FLOW(M3/H)

32---MAX HEAD(M)

D---D IS THE COCURRENT

24---VOLTAGE(V)

300---BATTERY BOARD ARRAY POWER

Technical Data

Model

Voltage  (V)

Power (W)

Max Flow (M3/H)

Max Head (M)

Outlet       (IN)

Weight (KG)

3SPJ2.6/32-D24/300

22-30

140-450

2.6

32

1"

8

3SPJ2.8/52-D36/500

32-43

260-750

2.8

52

1"

8.5

3SPJ3.0/85-D48/750

42-63

450-900

3

85

1"

9

3SPJ3.2/106-D72/1000

42-88

600-1200

3.2

106

1"

9.5



Model Five: 4SPSW3/60-D36/500

4SPG3/60-D36/500

4---PUMP OUTER DIAMETER(INCH)

SPG---SOLAR PUMP NAME

3---MAX FLOW(M3/H)

60---MAX HEAD(M)

D---D IS THE COCURRENT

36---VOLTAGE(V)

500---BATTERY BOARD ARRAY POWER



Technical Data

Model

voltage  (V)

Power (W)

Max Flow (M3/H)

Max Head (M)

Outlet       (IN)

Weight (KG)

4SPG3/60-D36/500

32-43

300-700

3

60

1"

10

4SPG3.6/80-D/750

42-63

450-1000

3.6

80

1"

10.5

4SPG3.8/95-D72/1000

42-88

600-1300

4

100

1"

13.5

4SPG4.2/100-D72/1300

42-88

800-1550

4.2

120

1"

14



Model Six: 3SPSW0.72/20-D12/80

3SPG0.72/20-D12/80

3---PUMP OUTER DIAMETER(INCH)

SPSW---SOLAR PUMP NAME

0.73---MAX FLOW(M3/H)

20---MAX HEAD(M)

D---D IS THE COCURRENT

12---VOLTAGE(V)

80---BATTERY BOARD ARRAY POWER

Technical Data

Model

voltage  (V)

Power (W)

Max Flow (M3/H)

Max Head (M)

Outlet       (IN)

Weight (KG)

3SPG0.72/20-D12/80

12

45-150

0.72

20

0.75"

6.5

3SPG0.76/28-D12/120

12

120

0.76

28

0.75"

6.7

3SPG0.86/38-D12/150

12

150

0.86

38

0.75"

6.8

3SPG1.0/30-D24/80

22-30

45-150

1

30

0.75"

7

3SPG1.3/50-D24/140

22-30

80-200

1.3

50

0.75"

7.2

3SPG1.5/80-D24/210

22-30

100-270

1.8

80

0.75"

7.5

3SPG1.5/95-D36/270

32-43

140-350

1.8

100

0.75"

8

3SPG1.5/115-D36/500

32-43

320-800

1.8

120

0.75"

9

3SPGS2.3/80-D48/750

42-63

480-950

2.3

140

0.75"

9

3SPG2.3/95-D72/1000

42-88

600-1200

2.3

160

0.75"

9.5

3SPG2.3/120-D72/1300

42-88

800-1500

2.3

180

0.75"

9.5
