SW-40kw Wind Turbine

SW-40kw Wind Turbine
Main Parameter:

Lower cost 40kw wind turbine



SENWEY low cost 40kW wind turbine can be applied in both on-grid and off-grid systems. The output is three phase AC and it can drive loads below 50kW.


Main features:

1. low cost and cheap, higher effective, cost-effective to work with solar panel system;

2. Adopting fiber glass nacelle, good heat dissipation, and attractive appearance;

3. All  the  core  components  selected  from  international  supplier  like  Siemens,

Schneider, Brand guarantees the quality;

4. 100% full power output with independance inverter; not alternator directly connect with grid;

5. Touch screen and remote control simplify the system operational status detecting;

6. Triple protection, ensure the operational security.

7. 18m Hydraulic tower available for easier maintenance and replacement; save much cost;




Technical parameters

Rotor diameter:

15.0m

Blades quantity:

3pcs

Direction:

always upwind

Blades material:

Glass fiber reinforced plastic

Rated output Power:

40.0kw

Maximum output Power:

42.0kW

working voltage:

DC240/500V,AC220V/380V

Annual average energy production:

65MWH (in average 5m/s wind speed)

working wind speed:

3-25m/s

Initial wind speed:

3.0m/s

Nominal wind speed:

12.0m/s

Storm-stand:

up to 50m/s

Max rotate speed:

200r/min

Wind turbine type:

Three-phase, PMG Alternator

Working temperature:

from -40 to +60 C

Blade Pitch Control

Fixed Pitch

Over Speed Protection

Auto-furl

Speed regulation methods:

Yawing motor and electrical magnet switch

Stop Methods

Manual Brake + Hydraulic Brake+ Auto Brake

Gearbox:

None, Direct Drive

Batttery full charge time:

about 8 hours

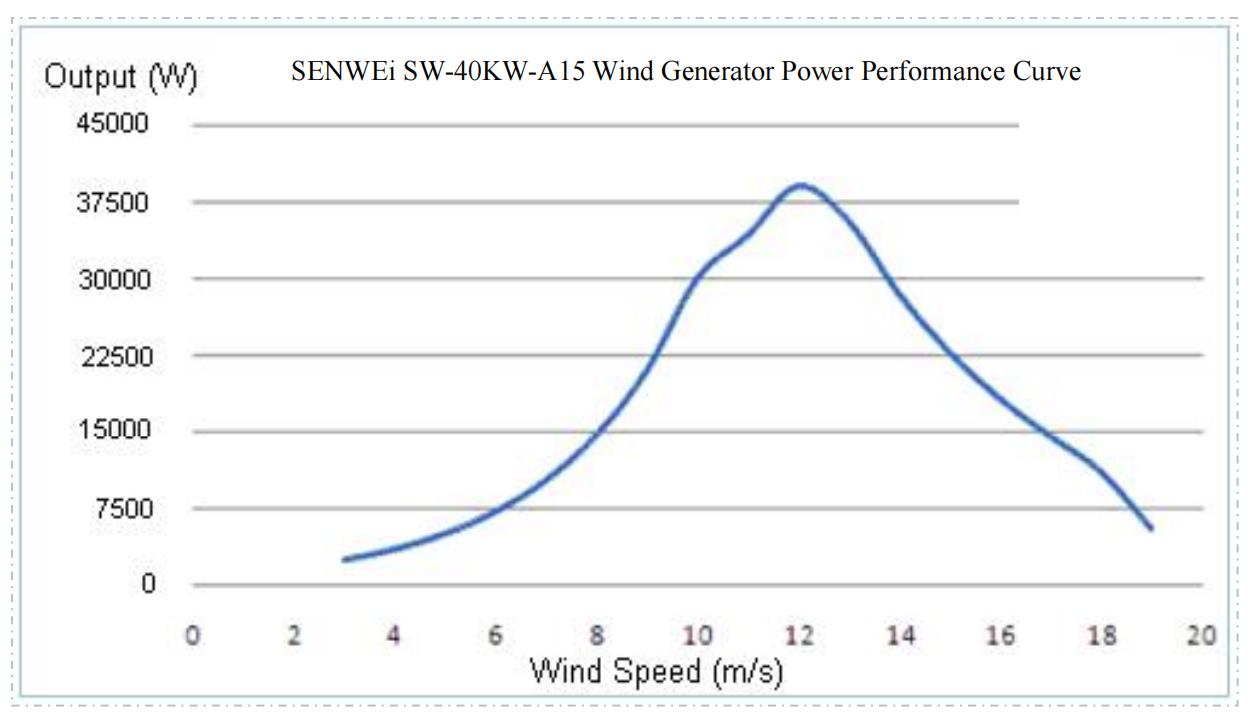

Power Curve














If you need any further information of SW-40KW fixed pitch wind turbine, please contact us below:
1> Online:  whatsapp: +86-18806776641 / Skype: doris421pu
2> Support Email:
sales@windpowercn.com
