Vertical axis wind turbine

Vertical axis wind turbine
Main Parameter:

 Vertical Axis Wind Turbine Generator 300W 600W 1KW 3KW China Price---

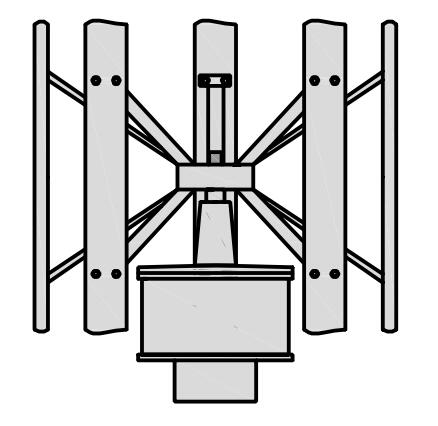

 Mini-Vertical axis wind turbine 10W-100W



Vertical Axis Wind Turbine involves a variety of subjects, such as Structure Mechanics, Product Design, Permanent-Magnet Machine, Machine Design, Aerodynamics, Wind Tunnel Test, Computational Fluid Dynamics and Maglev Technology. VAWT vertical wind generator is made of light-weight aluminum, titanium and other light special materials, mainly connected by stainless steel fasteners. Owing to the advanced Maglev Technology and the power of Super Magnets, VAWT wind power generator works stably without any mechanical friction. When driven by wind, the permanent-magnet machine rotates and the coil winding inside is moved relative to the permanent magnet, and thus AC is generated.



Vertical Axis Wind Turbine Technical Parameters (Mini-10W-50W)

Item

10w

20w

30w

50w

Blade Length(mm)

300

350

520

745

Blades rotor diameter(mm)

328

560

560

560

Blade Material

Aluminum alloy

Blade Quantity

5

5

5

5

Rated wind speed(m/s)

10

10

10

10

Start-up wind speed(m/s)

2

2

2

2

Working wind speed (m/s)

3.0-20

3.0-20

3.0-20

3.0-20

Security wind speed (m/s)

35

35

40

40

Starting torque(n/m)

0.05

0.07

0.1

0.13

Generator type

three phase, PM,AC

Rated Power

10W

20W

30W

50W

Max. Power

15W

30W

45W

60W

Rated RPM(r/min.)

500

400

400

400

working voltage

DC12V

DC12V-24V

DC12-24V

DC12-24V

Weight

2.3kgs

6kgs

7.5kgs

10.5kgs





Vertical Axis Wind Turbine Technical Parameters (Mini-100W-300W-500W-800W)

Item

100w

300w

500w

800w

Blade Length(mm)

1200

1400

1800

2200

Blades rotor diameter(mm)

900

900

900

900

Blade Material

Aluminum alloy

Blade Quantity

5

5

5

5

Rated wind speed(m/s)

12

12

12

12

Start-up wind speed(m/s)

2

2

2

2

Working wind speed (m/s)

3.0-20

3.0-20

3.0-20

3.0-20

Security wind speed (m/s)

40

40

40

40

Starting torque(n/m)

0.45

1.1

2.1

2.6

Generator type

three phase, PM,AC

Rated Power

100W

300W

500W

800W

Max. Power

110W

330W

550W

880W

Rated RPM(r/min.)

400

400

360

360

working voltage

DC12-24V

DC12V-24V

DC12-24-48V

DC12-24-48V

Weight

13.3kgs

16kgs

17.5kgs

20.5kgs

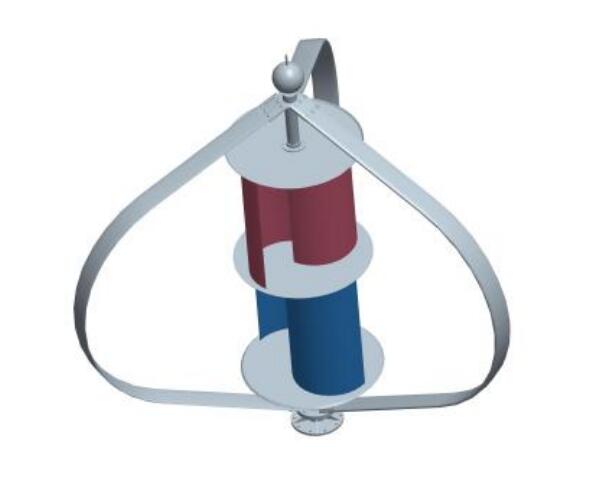

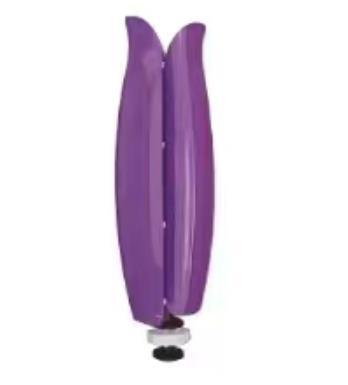

vertical axis wind turbine/wind power generator/tulip wind turbine/vertical wind generator 1kW /2kw /3kw/5kw/10kw /20kw, cheap price disc coreless permanent magnet generator for wind turbine easy maintenance



SENWEI Vertical axis wind generator (VAWTs) 1kw to 5kw, 10kw/20kw is a type of wind generator where the main rotor shaft is set vertically. VAWTs offer a number of advantages over traditional horizontal-axis wind generator (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. They are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.





SENWEI vertical Axis wind generator are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be installation at urban .They are easily maintained and can be installed on rooftop and similar tall structures.


SENWEI vertical Axis wind generator Parameters 1KW/2KW/3KW/5KW/10KW/20KW

Vertical Axis Wind Turbine Technical Parameters (1000W-2000W-3000W-5000W)

Item

1000w

2000w

3000w

5000w

Blade Length(mm)

1800

2600

3200

3650

Blades rotor diameter(mm)

1800

2600

3200

3500

Blade Material

Aluminum alloy

Blade Quantity

3

4

5

5

Rated wind speed(m/s)

12

12

12

12

Start-up wind speed(m/s)

1.8

1.8

1.8

1.8

Working wind speed (m/s)

3.0-20

3.0-20

3.0-20

3.0-20

Security wind speed (m/s)

45

45

45

45

Stop Way (Auto/Manual)

Auto Brake

Auto Brake

Auto Brake

Auto Brake

Generator type

three phase, PM,AC

Rated Power

1000W

2000W

3000W

5000W

Max. Power

1100W

2350W

3400W

6000W

Rated RPM(r/min.)

180

160

120

120

working voltage

DC12-300V

DC24V-300V

DC48-360V

DC48-500V

Weight

68kgs

95kgs

175kgs

310kgs



Vertical Axis Wind Turbine Technical Parameters 10KW/20KW

Item

10000w

20000W

Blade Length(mm)

4000

6500

Rotor diameter(mm)

 4000

 6000

Blade Material

Aluminum alloy

Blade Quantity

 5

 5

Rated wind speed(m/s)

 11

 11

Start-up wind speed(m/s)

2

2

Working wind speed m/s

3.0-20

3.0-20

Security wind speed (m/s)

45

45

Brake Way

Auto Brake+Manual Brake

Auto brake+ manual brake

Generator type

three phase, PM,AC

Rated Power

10kW

20kW

Max. Power

11kW

25kW

Rated RPM(r/min.)

100

90

working voltage

DC120V-500V

DC240-650V

Weight

460kgs

660kgs
