Main Parameter:

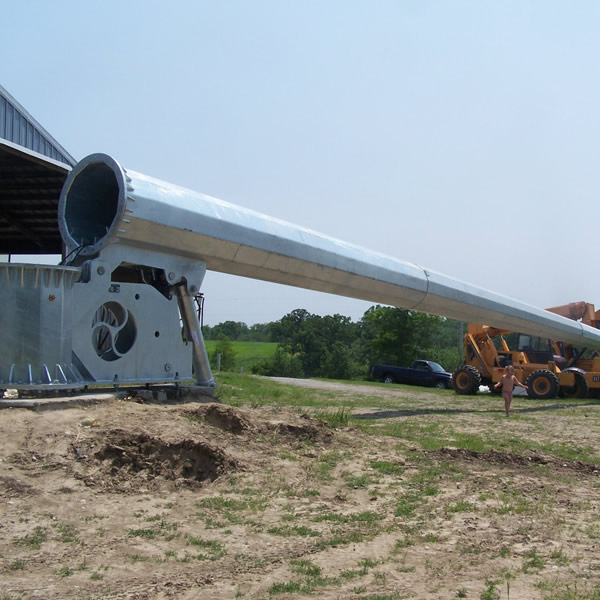

Hydraulic towers, developed by SENWEI WIND POWER, are applied to wind turbine generators from 1kW to 50KW. Compared to the traditional guy cable tower, hydraulic tower enjoys the advantages of handsome exterior and taking small room (burdensome steel wires); Compared to the traditional tapered tower, the most outstanding merit for hydraulic tower is that wind turbine generator can be erected and laid down automatically through the appliance of hydraulic system to achieve installation and maintenance. So there is no need the cooperation of the crane, which will save the installation and maintenance cost to a great extent.

Composed by three sections of steel pipe with different diameters, the hydraulic towers are supplied by tower base, hypo-cylinder, and hydraulic pump. Flanges are welded to the both sides of each tower for connections. Tower base will be placed on the foundation.

Currently there are two models of hydraulic tower available, namely, manual hydraulic tower (8M) for 500W~2KW wind turbines and electric hydraulic tower (12M) for 3KW~10kw wind turbines,and (18m) for 20Kw-50Kw wind turbines.

Notes: 16M electric hydraulic tower is also available for 3KW~10KW.

Warnings: 1> This guide has been carefully checked by engineers of SENWEI Energy Technology Co,.

2>Please forgive from specification alterations without notice.

l          3> It is required to comply with the local law, regulation or the permission from local government before installing WTGS.

l          4> only under no wind weather should proceed with the installation, maintenance and dismantling of WTGS.

l          5>Color or figuration of pictures might be varied against physical goods.

l          6>Project of tower installation should be carried out by professional builder. Please pay attention to safety during installation.

l          7> Please do not dismantle the inner structure of wind turbines until get any instructions from us. Any personal actions without our hints to dismantle should be excluded from the rights of warranty.

Parameter table

Model

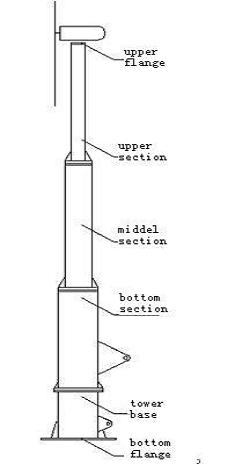

Code No. in pic. 1

500W-2KW hydraulic

 free standing tower

3KW-10KW

hydraulic free

standing tower(12m)

3KW-10KW

hydraulic free

standing tower(16m)

Height( m)

-

8

12

16

Section No.

-

3

Upper section parameter

Height (m)

2

4

4

Diameter (mm)

114

325

325

Thickness (mm)

4

6

6

Middle section parameter

Height (m)

3

4

6

Diameter (mm)

219

480

480

Thickness (mm)

5

8

8

Bottom section parameter

Height (m)

2.4

3.4

5.4

Diameter (mm)

325

630

630

Thickness (mm)

6

8

8

Tower base parameter

Height (m)

0.6

0.6

0.6

Diagram

Weight( kg)

360

1408

2051

Upper flange

(connecting generator)

C1( mm)

150

310

310

C2( mm)

120

200

200

C3( mm)

90

160

160

T1( mm)

M12

M16

M16

N1

6

12

12

Bottom flange(placed on

foundation)

C1( mm)

500

940

940

C2( mm)

430

770

770

C3( mm)

326

635

635

T1( mm)

Φ27

Φ40

Φ40

N1

12

14

14
