20kW|30kW pitch wind turbine

Main Parameter:



Model: SWT-20kW Pitch wind turbine; | SWT-30kW Pitch Wind Turbine



SWT20-12.25 Pitch Wind Turbine  and SWT30-12.5 Pitch Wind Turbine is one of the down-wind centrifugal force controlled passive variable pitch wind turbine series (2kW/5kW/10kW/20kW/30kW) designed and manufactured by Senwei Energy company that follows BWEA standard. Product quality has been well controlled by following ISO9001 standard. Ever since accessed to the international market in 2010, it has performed excellently with good power generating, durability, safety, quick installation, easy maintenance, compact structure and streamline appearance.



 Product Characteristics

Ø Rotation speed controlled by centrifugal force with passive variable pitch mechanism.

Ø Power curve optimized by two-stage springs to balance pitch driving force.

Ø No tailvane, down-wind design with electricity transmitted by cellecting ring.

Ø 3-phase direct drive permanent magnet generator with maintenance free.

Ø All surfaces sealed with turbine outer parts pot galvanized,antirust.

Ø Quick installation and easy opearating.

Ø Compact structure with streamline and nice appearance.

Ø Running stability and safety with 15 years lifetime,easy maintenance.

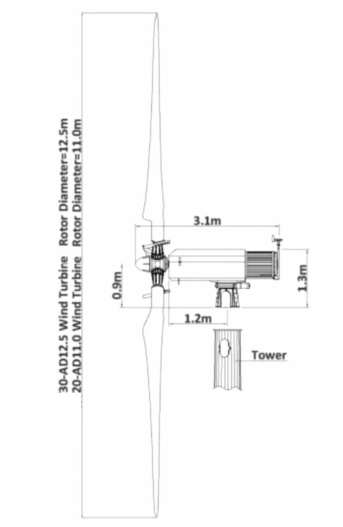

l Structure Dimensions









 l Variable Pitch Mechanism: Blade angle is positive 15 degree as factory setting at which the turbine is easy to start spinning. After the turbine getting running ,the angle of blades turns to 0 degree quickly, and the blade acts at its most efficient point (one spring acts). It outputs 20kW electrical power at 10m/s wind speed with 120 rpm rotor rotation speed. If the wind speed increases,the blade is forced to turn towards negative angle by centrifugal hammers to limit rotation speed (two springs act). The springs balance the blades angle and rotation speed while regulating power generating.

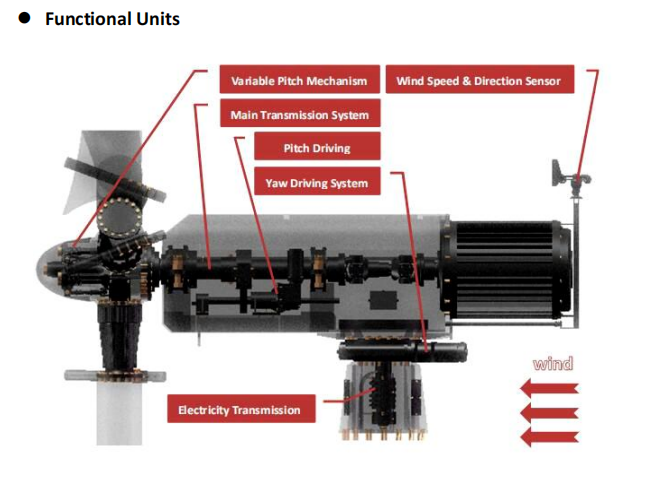

l Functional Units







l Technical Data -SWT-20kW | 30kW pitch controlled wind turbine



Rotor Diameter (m)	11.0 | 12.50
Blade Material / Quantity	RTM GRP / 3
Rated Power (W)	20kW | 30kW
Rated Wind Speed (m/s)	12
Startup Wind Speed (m/s)	2.5
Working Wind Speed (m/s)	3-25
Security Wind Speed (m/s)	59.5
Rated Rotation Speed (r/min)	120
Working Voltage	DC360V/540V
System Output Voltage	AC220V/380V
Weight of Turbine (kg)	2000 | 2450
Generator Type	3 Phase AC PM
Rotation Speed Regulation	Variable Blade Pitch
Brake System	Active feathering pitch to 90 degree,Auto Brake
Operating Temperature	-40°C — +60°C
Extreme Temperature	-40°C / +60°C
Design Lifetime	20 years

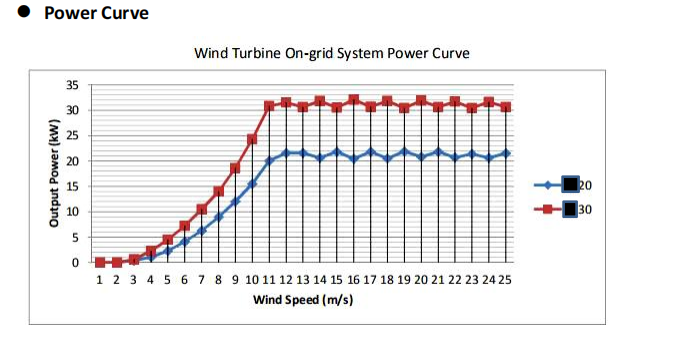

l Power Curve
