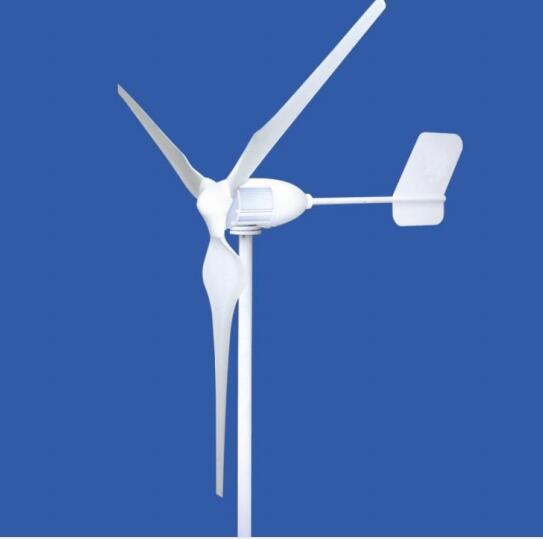

mini wind turbine 100-1KW

Main Parameter:

Mini wind turbine generators 100W-1000W(1kw) from China SENWEI are total meet European standard and America Standard, like IEC 61400 series standards, and CE certified, ISO9001 and CAN/CSA-F416-87 (R2004)/ CAN/CSA-F417M91 (R2004), with the perfect appearance,  performance and the most competitive price, mini wind turbine have already received the most popular from oversea and domestic market customers, hope you like our new concept style series mini wind turbine, since its real excellence in quality with the best price!

The new style series mini wind turbine has below advantages:

1> Exposed parts are made by stainless steel or have passed special long time effective rustprotection treatment, so the outside of those parts dont need maintenance.

2>generator has adopted high grade SKF bearings and high grade lithium grease, the bearings need to be checked after operating for 5 years, if it is necessary, add some grease to the bearings.

3> The wind generator adopt brush less type.

4> When the wind overspeed, the speed regulation methods automatic by electromagnetic braking which was controlled by controller, and by the tail yawing two ways.

5> The wind generator could keep working with lower wind velocity-even breeze, just need 2.0-3.0m/s to start-up.

6> If windy enough it could generate more power than same types wind mill.

7> Mini wind turbine could work in more wicked environment that is 45m/s storm, which some types only bear at most 40m/s storm.

8> More steady so that Less noisy, the wind turbine noisy level<35db.

9> Mini wind turbine also have fine-looking at the appearance!

10> its wind generator life time span more than 20years.



Technical parameters

Rotor diameter:	1.2m-1.3m-1.4m-1.5m-1.6m-1.7m-1.8m-2.0m-2.4m
Blades quantity:	3pcs
Direction:	always upwind
Blades material:	Glass fiber reinforced plastic
Rated output Power:	100W-200W-300W-400W-500W-600W-700W-800W-1000W
Maximum output power:	130W-220W-310W-410W-510W-610W-720W-820W-1050W
working voltage:	DC12V/24/36V/48V/96V,AC220V
working wind speed:	3-20m/s
Initial wind speed:	2.0m/s
Nominal wind speed:	11.0m/s
Storm-stand:	up to 40m/s
Max rotate speed:	450r/min
Wind turbine type:	Three-phase, PMG (on constant magnets)
Working temperature:	from -40 to +60 C
Stop Methods	Brake by Hand Drag
Battery voltage(V)/capacity(AH):	12*2/150
Speed regulation method:	Yawing and electric magnet dumping
Accumulators full charge time:	about 8 hours
Mast height/weight:	6m/8m - optional /65kg
Weight:	5kg-5.2kg-5.6kg-6.8kg-9.8kg-15.5kg-21kg-30kgs
