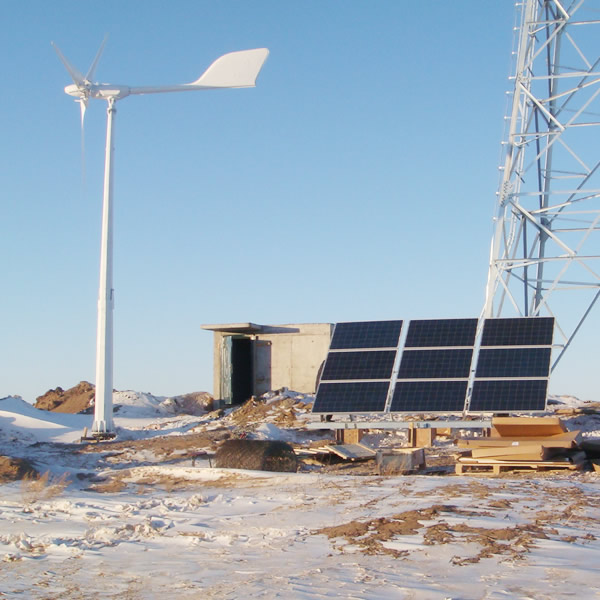

Wind-solar hybrid system

Wind-solar hybrid system
Main Parameter:

According to many renewable energy experts, a small "hybrid" electric system that combines wind and solar (photovoltaic) technologies offers several advantages over either single system.

In much of the places, wind speeds are low in the summer when the sun shines brightest and longest. The wind is strong in the winter when less sunlight is available. Because the peak operating times for wind and solar systems occur at different times of the day and year, hybrid systems are more likely to produce power when you need it.

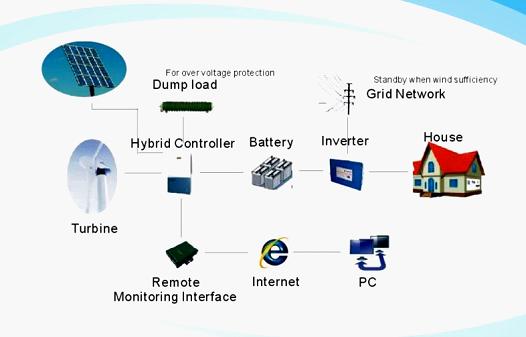

System include:

1. PV Array: A number of PV panels connected in series and/or in parallel giving a DC output out of the incident irradiance. Orientation and tilt of these panels are important design parameters, as well as shading from surrounding obstructions.

2. Wind turbine: This is installed on top of a tall tower, collects kinetic energy from the wind and converts it to electricity that is compatible with a home's electrical system.

3. Hybrid controller: control battery bank charge and discharge reasonable and safety.

4. Battery bank: can be a single battery or multiple batteries connected together to create essentially one large battery of the required voltage and amp-hour capacity. In some ways the battery configuration and capacity are the most important electrical power decision to make, and a wise choice can help guarantee a steady supply of electrical power as well as a system that is simple to operate and maintain.

5. Inverter: A power converter that ¡°inverts¡± the DC power from the panels into AC power.

6. Loads: Stands for the network connected appliances in the building that are fed from the inverter (AC loads), or from the battery bank (DC loads).

POWER

500W

800W

1.5KW

2.5KW

4KW

5KW

     8KW

WIND TURBINE

300W

500W

1KW

2KW

3KW

3KW

     5KW

SOLAR PANEL

200W

300W

500W

500W

1KW

2KW

     3KW

WIND/PV HYBRID

 CONROLLER

500W

800W

1.5KW

2.5KW

4KW

5KW

     8KW

INVERTER

800VA

1KVA

2KVA

3KVA

5KVA

8KVA

     10KVA

BATTERIES

12V 200AH

2PCS

12V 200AH

4PCS

12V 200AH

 4PCS

12V 200AH

 8PCS

12V 200AH

 12PCS

12V 150AH

16PCS

 12V 200AH

20PCS
